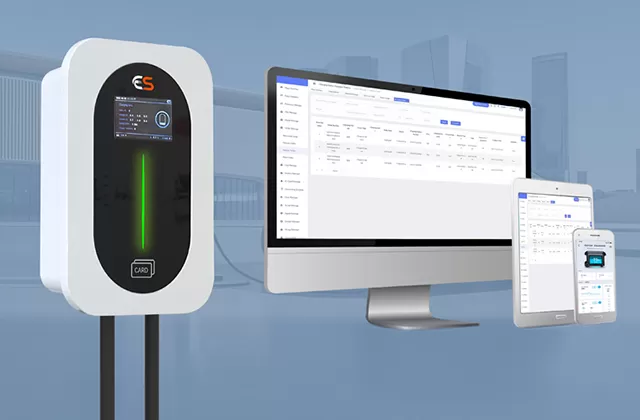

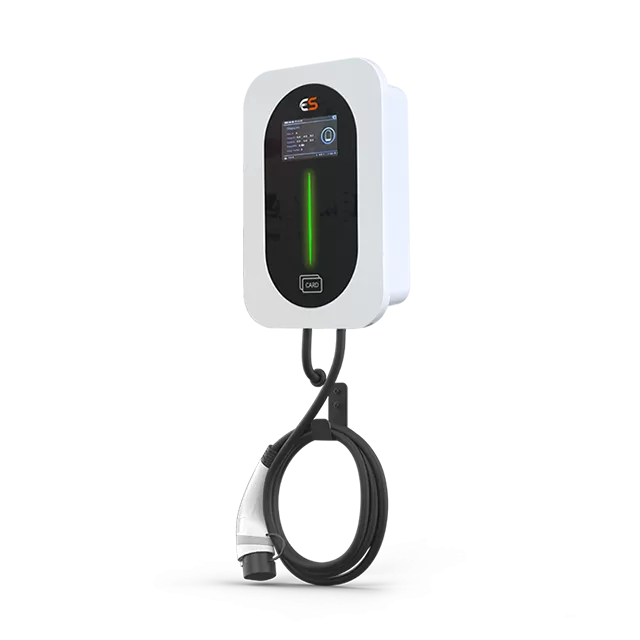

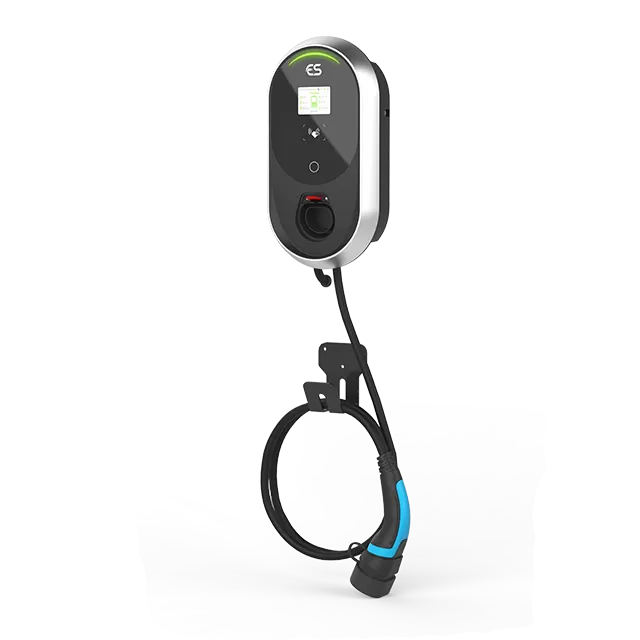

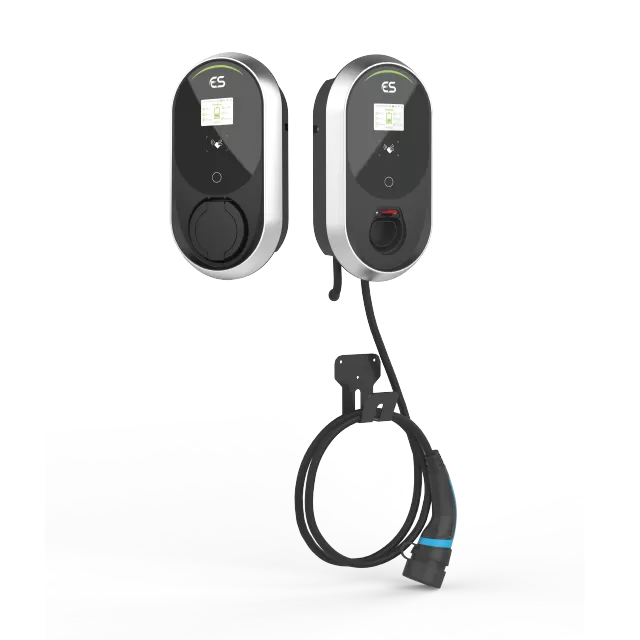

Available in three power ratings: 7.4kW, 11kW and 22kW, with optional screen and screenless versions. Socket type and cable-integrated models are both available. It perfectly meets low-to-medium charging demands for residential and commercial scenarios, such as home garages and small public charging stations.

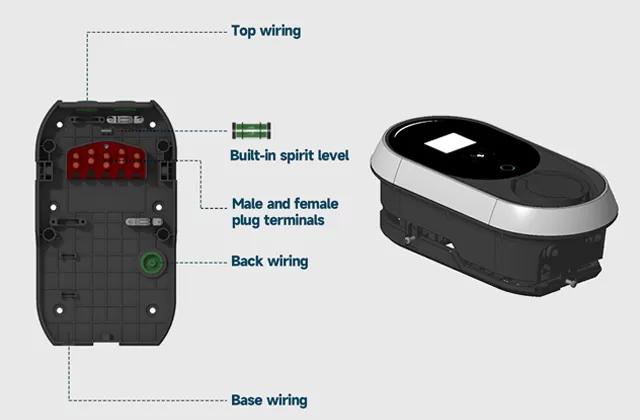

The wallbox provides three cable entry options: top, rear and bottom.Built-in water level indicator and male-female plug connection enable fast one-person installation, delivering higher efficiency and greater convenience.

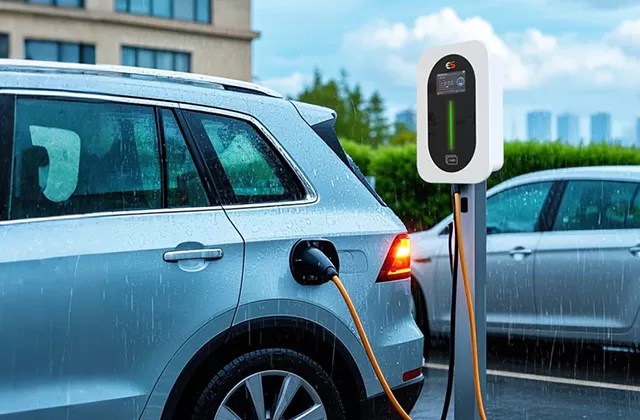

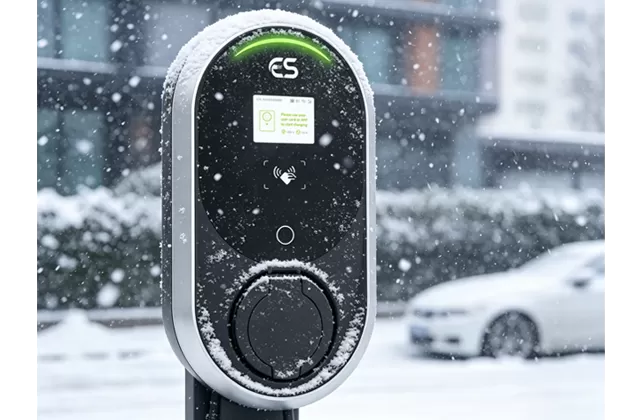

Operating temperature range: -30℃ to +50℃. Equipped with IP65 high protection rating, it is well suited for extremely cold regions such as Russia and Northern Europe. The device supports indoor and outdoor full-scenario deployment, resisting severe low temperatures and harsh weather to deliver stable operation around the clock.

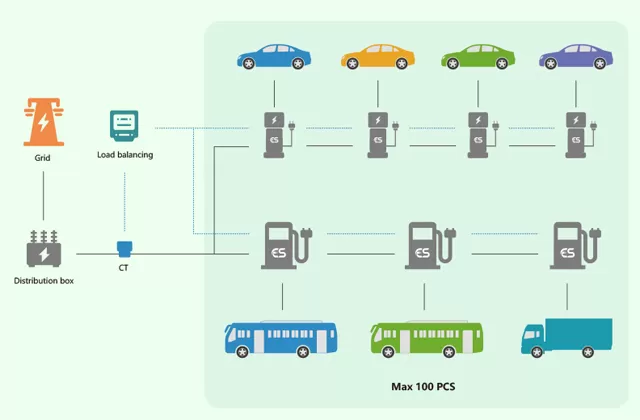

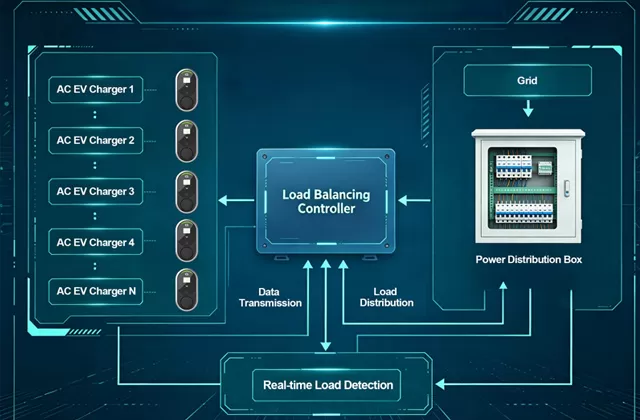

This outdoor one-to-multi power supply solution is tailored for small station scenarios, enabling streamlined and efficient overall power management.The system integrates three core control strategies: total current limitation, first-come-first-served on-demand distribution, and balanced load sharing.Supported by smart electricity meters for accurate metering and data monitoring, it effectively stabilizes overall power load control and ensures safe, orderly power operation at small-scale stations.
Model | ES220–07AC3–EU –B–T-V1/V2/V3 | ES380–11AC3–EU–B–T-V1/V2/V3 | ES380–22AC3–EU –B–T-V1/V2/V3 | |
Electrical specification | Power supply | 1P+N+PE | 3P+N+PE | |
Rated voltage | 230VAC | 400VAC | ||
Frequency | 50/60Hz | |||
Rated current | 32A(Max) | 16A(Max) | 32A(Max) | |
Rated power | 7kW | 11kW | 22kW | |
Recommend power supply cable | 3x6mm2 copper | 5x2.5mm2 copper | 5x6mm2 copper | |
Charging plug | Type1,Type 2,GB/T, 1-phase plug +5m cable or socket | Type2, GB/T, 3-phase plug +5m cable or socket | ||
Start mode | Plug-and-play/RFID card/APP/OCPP | |||
Functional description | Display screen | 2.4-inch LCD screen(display current, voltage, power, charging time, state& fault information, etc.) | ||
LED indicator | LED strip indicate (see details in LED indicator description) | |||
Communication interface | WIFI/Ethernet/4G(optional) | |||
Communication protocol | OCPP 1.6 J (optional) | |||
Safety protection | Emergency stop button, surge protection, over/under voltage, over current, ground protection, leakage protection, over temperature | |||
RCD built-in | Yes, Type B RCD (AC 30mA+DC 6mA) built-in | |||
Ambient conditions | Work altitude | ≤ 2000 m | ||
Storage temperature | -40 ~ +85℃ | |||
Work temperature | -30 ~ +50℃ | |||
Operating humidity | 5%-95% no condensation | |||
Installation location | Indoor or outdoor, good ventilation, no flammable, explosive gases | |||
Cooling | Natural cooling | |||
Mechanical parameters | Net weight | 3.1kg(Socket Type) 4.9kg(Cable Type) | 3.1kg(Socket Type) 4.7kg(Cable Type) | 3.1kg(Socket Type) 5.9kg(Cable Type) |
Unite size | H=375mm, W=200mm, D=118mm | |||
| Post height | 1500m | |||
| Mounting | Wall-mounted/ground-mounted(mounting post is optional) | |||
| IP grade | IP 65 | |||
