Available in three power ratings: 7.4kW, 11kW and 22kW, with optional screen and screenless versions. Socket type and cable-integrated models are both available. It perfectly meets low-to-medium charging demands for residential and commercial scenarios, such as home garages and small public charging stations.

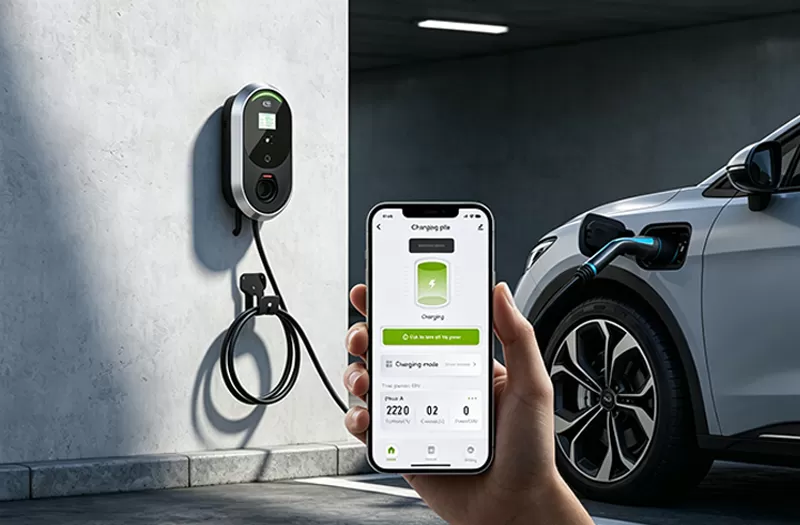

Supports Bluetooth/Wi-Fi/4G connection to the APP. Remotely adjust power, set charging schedules and check device status. It also enables OTA upgrades and fault diagnosis, allowing one-tap control of all charging functions via your mobile phone.

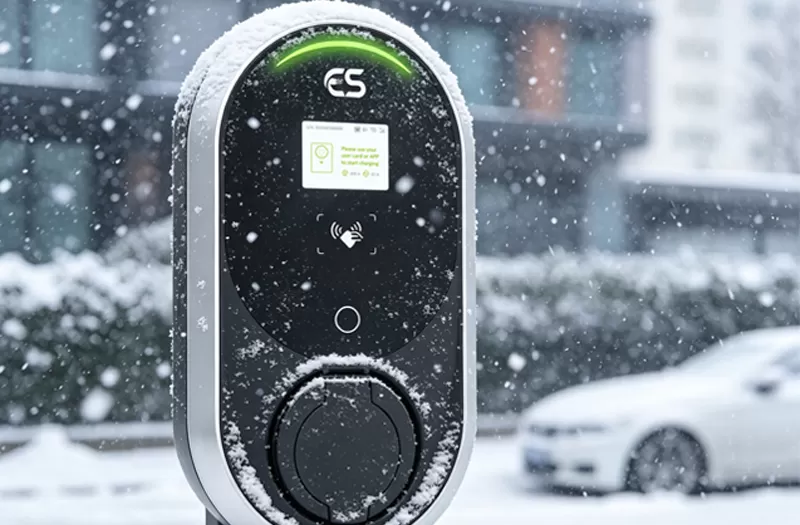

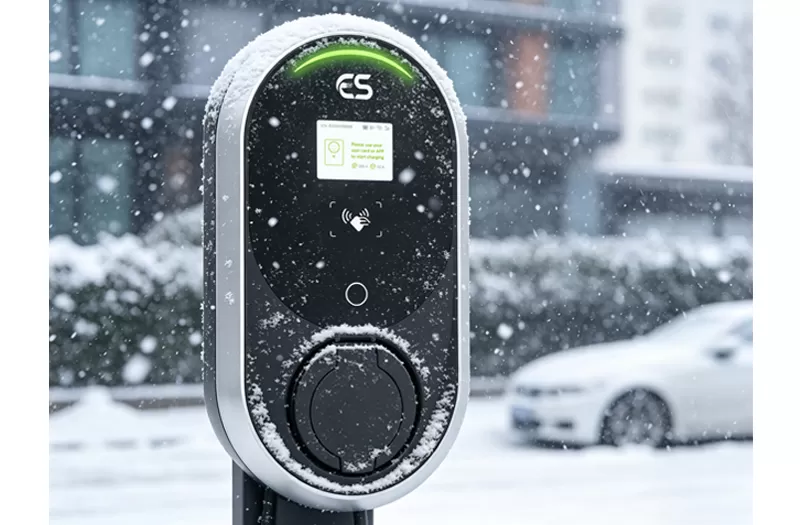

Operating temperature range: -30℃ to +50℃. Equipped with IP65 high protection rating, it is well suited for extremely cold regions such as Russia and Northern Europe. The device supports indoor and outdoor full-scenario deployment, resisting severe low temperatures and harsh weather to deliver stable operation around the clock.

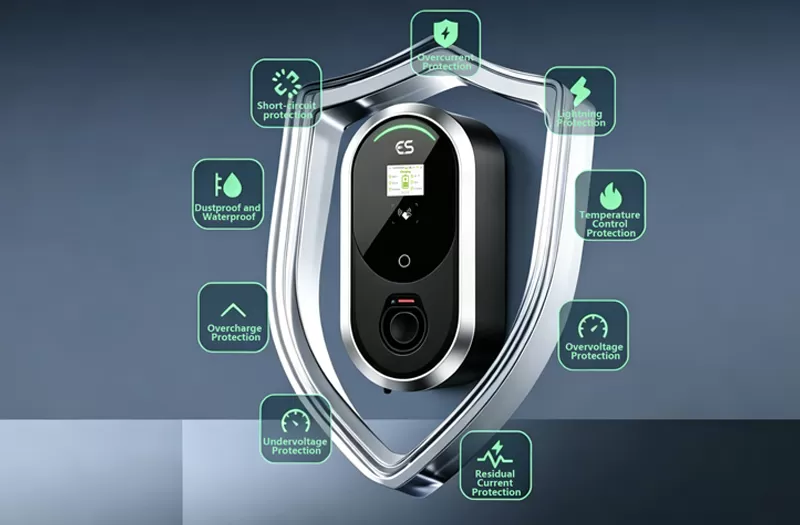

Built-in high-standard AC30mA + DC6mA leakage protection, combined with overvoltage/undervoltage/overcurrent/overtemperature and no-earthing protection. It comprehensively avoids electricity safety risks, delivering reliable safety for both household and commercial use.
Model | ES220–07AC3–EU –B–T-V1/V2/V3 | ES380–11AC3–EU–B–T-V1/V2/V3 | ES380–22AC3–EU –B–T-V1/V2/V3 | |
Electrical specification | Power supply | 1P+N+PE | 3P+N+PE | |
Rated voltage | 230VAC | 400VAC | ||
Frequency | 50/60Hz | |||
Rated current | 32A(Max) | 16A(Max) | 32A(Max) | |
Rated power | 7kW | 11kW | 22kW | |
Recommend power supply cable | 3x6mm2 copper | 5x2.5mm2 copper | 5x6mm2 copper | |
Charging plug | Type1,Type 2,GB/T, 1-phase plug +5m cable or socket | Type2, GB/T, 3-phase plug +5m cable or socket | ||
Start mode | Plug-and-play/RFID card/APP/OCPP | |||
Functional description | Display screen | 2.4-inch LCD screen(display current, voltage, power, charging time, state& fault information, etc.) | ||
LED indicator | LED strip indicate (see details in LED indicator description) | |||
Communication interface | WIFI/Ethernet/4G(optional) | |||
Communication protocol | OCPP 1.6 J (optional) | |||
Safety protection | Emergency stop button, surge protection, over/under voltage, over current, ground protection, leakage protection, over temperature | |||
RCD built-in | Yes, Type B RCD (AC 30mA+DC 6mA) built-in | |||
Ambient conditions | Work altitude | ≤ 2000 m | ||
Storage temperature | -40 ~ +85℃ | |||
Work temperature | -30 ~ +50℃ | |||
Operating humidity | 5%-95% no condensation | |||
Installation location | Indoor or outdoor, good ventilation, no flammable, explosive gases | |||
Cooling | Natural cooling | |||
Mechanical parameters | Net weight | 3.1kg(Socket Type) 4.9kg(Cable Type) | 3.1kg(Socket Type) 4.7kg(Cable Type) | 3.1kg(Socket Type) 5.9kg(Cable Type) |
| Post height | 1500m | |||
| Mounting | Wall-mounted/ground-mounted(mounting post is optional) | |||
| IP grade | IP 65 | |||
