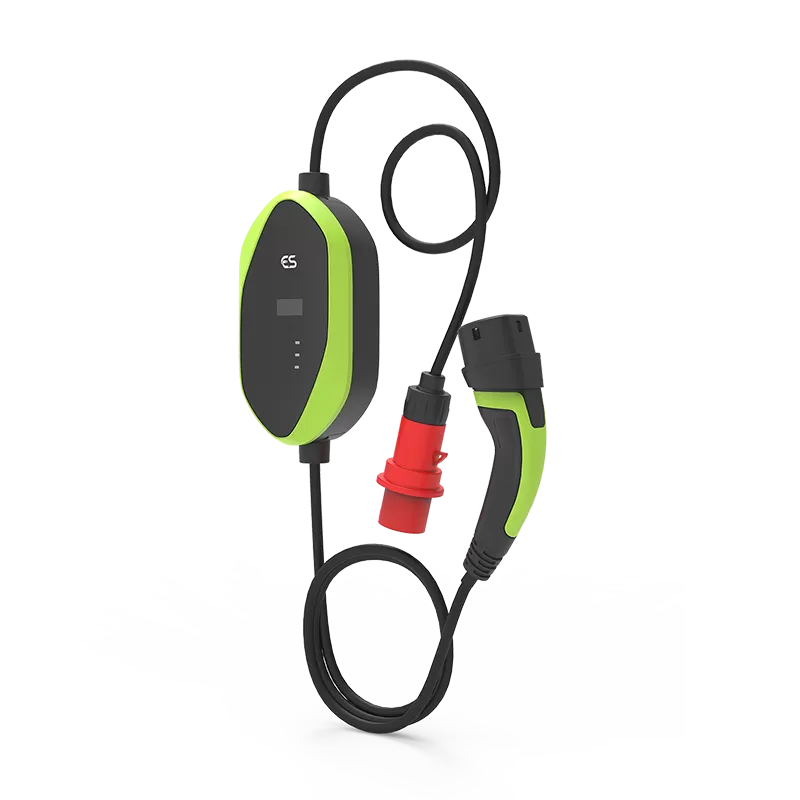

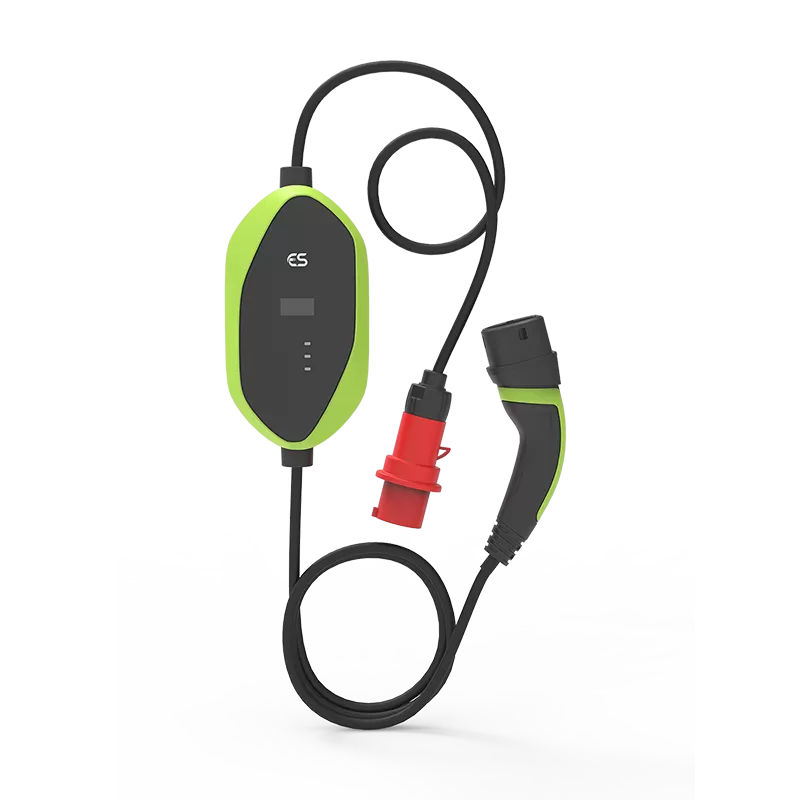

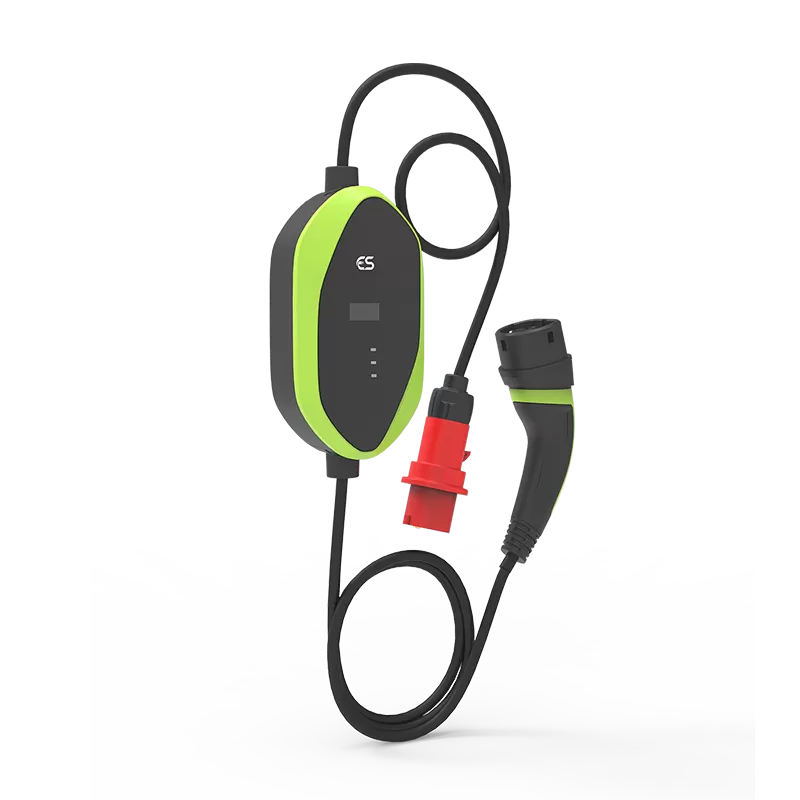

11kW/22kW three‑phase high power output.Weighing only 1.9 kg, it perfectly balances portability and fast charging performance.Ideal for road trips, emergency charging at villas and retail stores, RV parks and other scenarios.

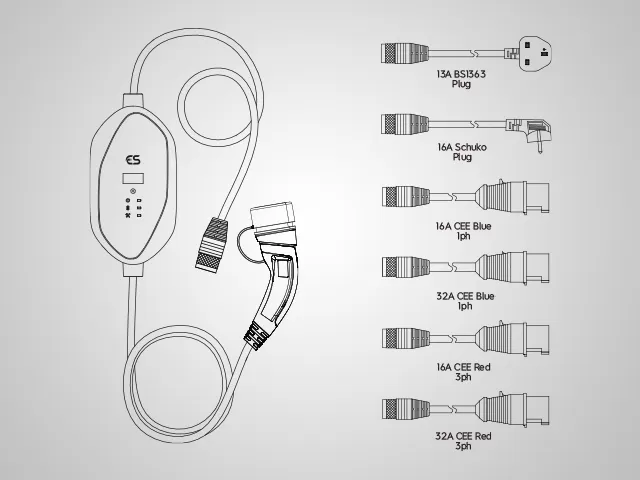

Optional C-CPD aerospace-grade connectors.Featuring a secure connection and anti-loosening structure, it adapts to frequent use in harsh outdoor conditions and greatly extends the service life of the equipment.

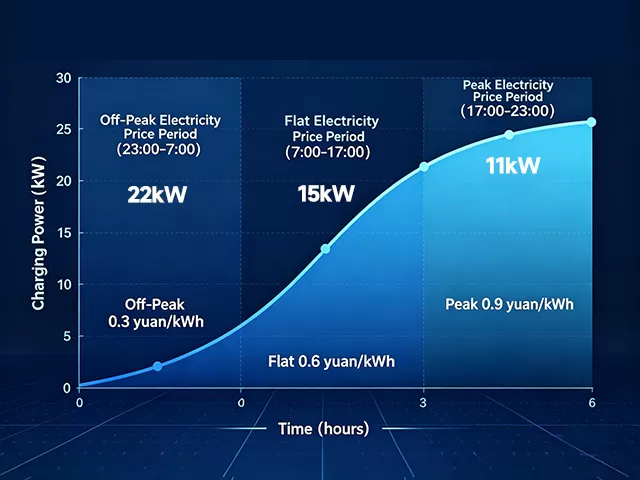

It supports multiple charging modes: instant charging, fixed-capacity charging, and 1–10 hours scheduled delayed charging.Users can flexibly take advantage of off-peak electricity tariffs to cut charging costs effectively, making it suitable for both residential and commercial scenarios.
Supports plug-and-play functionality and remote control via APP Bluetooth/Wi-Fi. The charging current is manually adjustable within the range of 6A to 32A, so as to accommodate the load requirements of different power supply circuits.
Model | ES380-11AC2-EU-B-T-P5C2 | ES380-22AC2-EU-B-T-P5C2 | |
Electrical specification | Rated voltage | 400VAC+15% 3ph TN/TT | |
Frequency | 50/60Hz | ||
Rated current | 16A(Max) | 32A(Max) | |
Rated power | 11kW | 22kW | |
Charging plug | Equipped with a multi-functional plug | ||
Functional description | Start mode | Plug-and-play / APP control | |
Display screen | Screen (display current, voltage, power, charging time, state& fault information, etc.) | ||
LED indicator | LED strip indicate 3 statuses (see details in LED indicator description) | ||
Safety protection | Over-voltage protection, Under-voltage protection, Over-current protection, Short-circuit protection, Ungrounded protecton, Over-temperature protection, AC 30mA+ DC 6mA | ||
RCD built-in | 30mA as default | ||
Schedule charging | 1-10hours | ||
Ambient conditions | Work altitude | ≤ 2000 m | |
Storage temperature | -40 ~ +85℃ | ||
Work temperature | -30 ~ +50℃ | ||
Operating humidity | Up to 75%,maximum value at 40℃ | ||
Installation location | Indoor or outdoor (with good ventilation, no flammable or explosive gases) | ||
Cooling | Natural cooling | ||
Mechanical parameters | Size(control box) | H=266mm, W=125mm, D=70mm | |
Mounting | Wall-mount/carry-on Optional | ||
IP grade | IP66 | ||
Material | PC V0 for outdoor | ||
Net weight | 1.9kg | 3.5kg | |
