Built for the cost and space saving, and for the long haul.
From its durable and waterproof design, to its integrated electrical protections, Estar Twin EV AC charger can easily connect to your OCPP platform via 4G simcard or Ethernet ,support the billing and administration via your platform—all while delivering a seamless charging experience to your EV drivers.

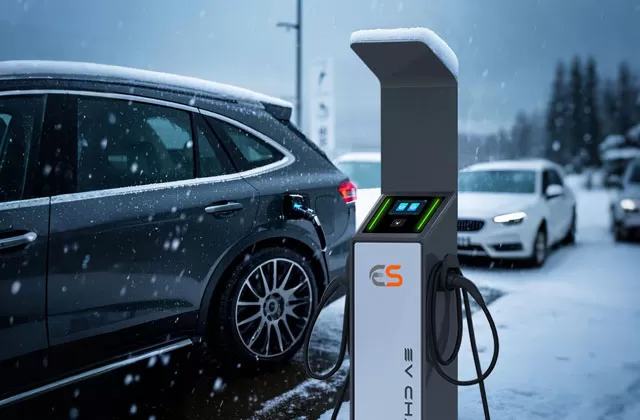

Better protect the screen and extend the lifespan of the entire EV charger.

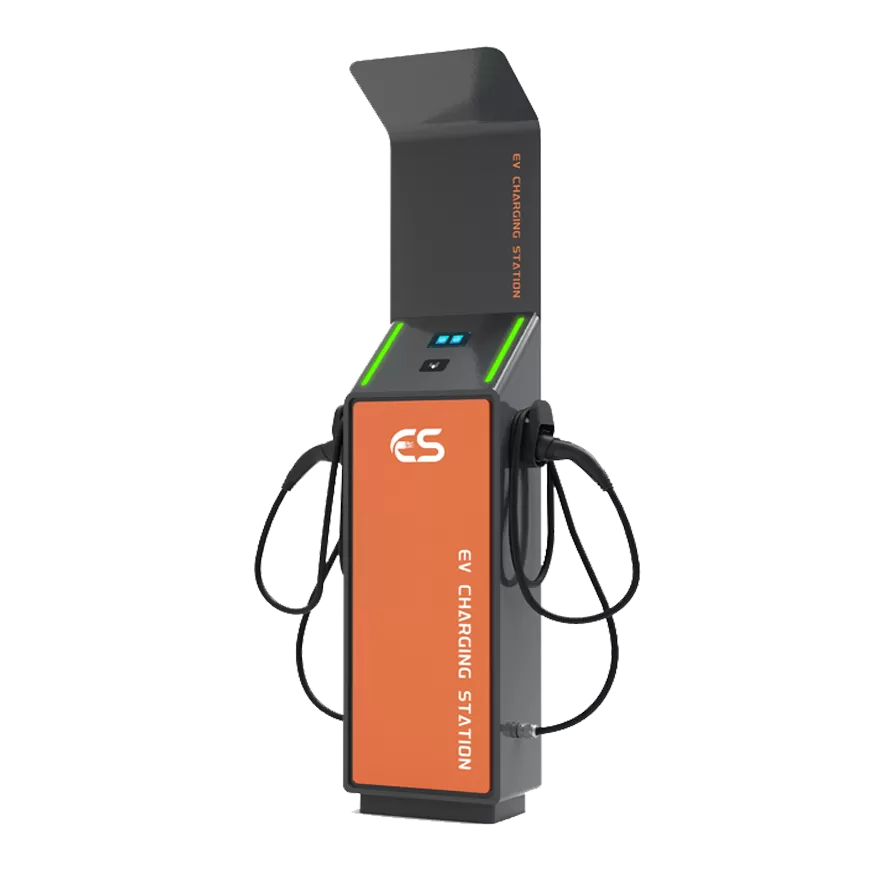

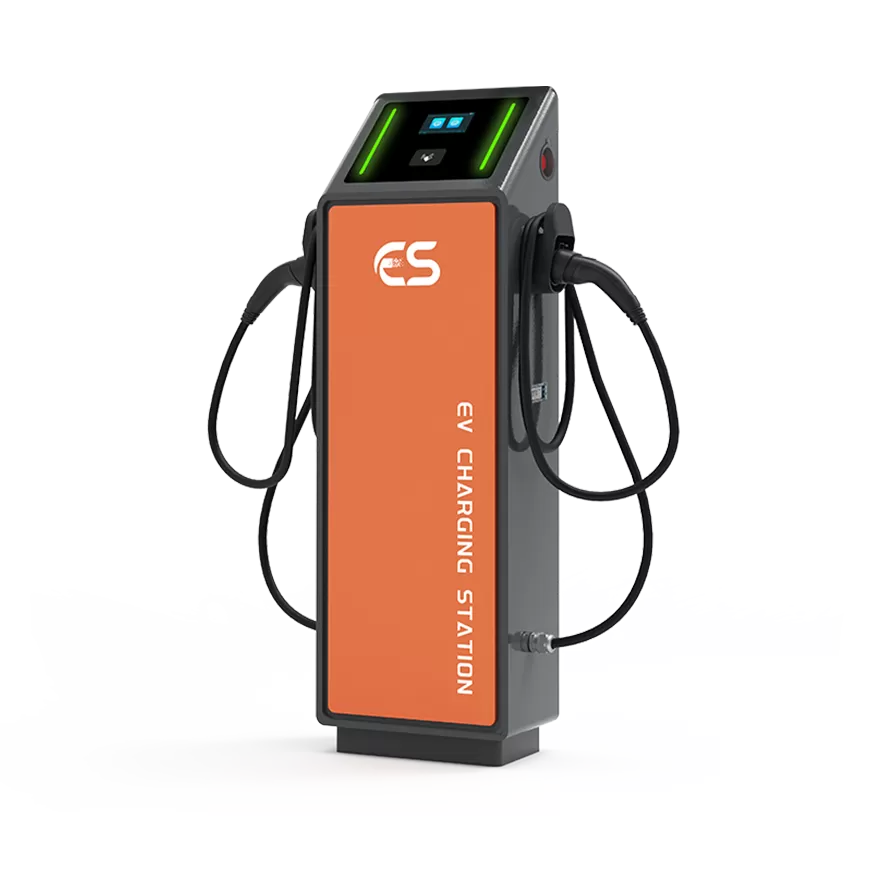

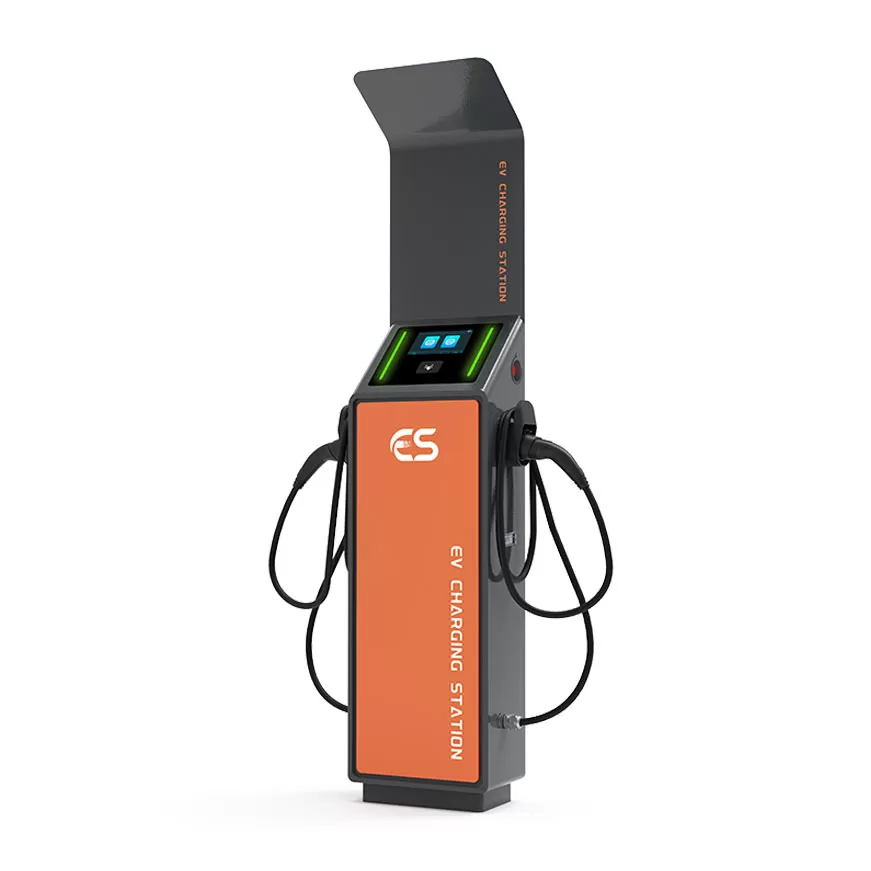

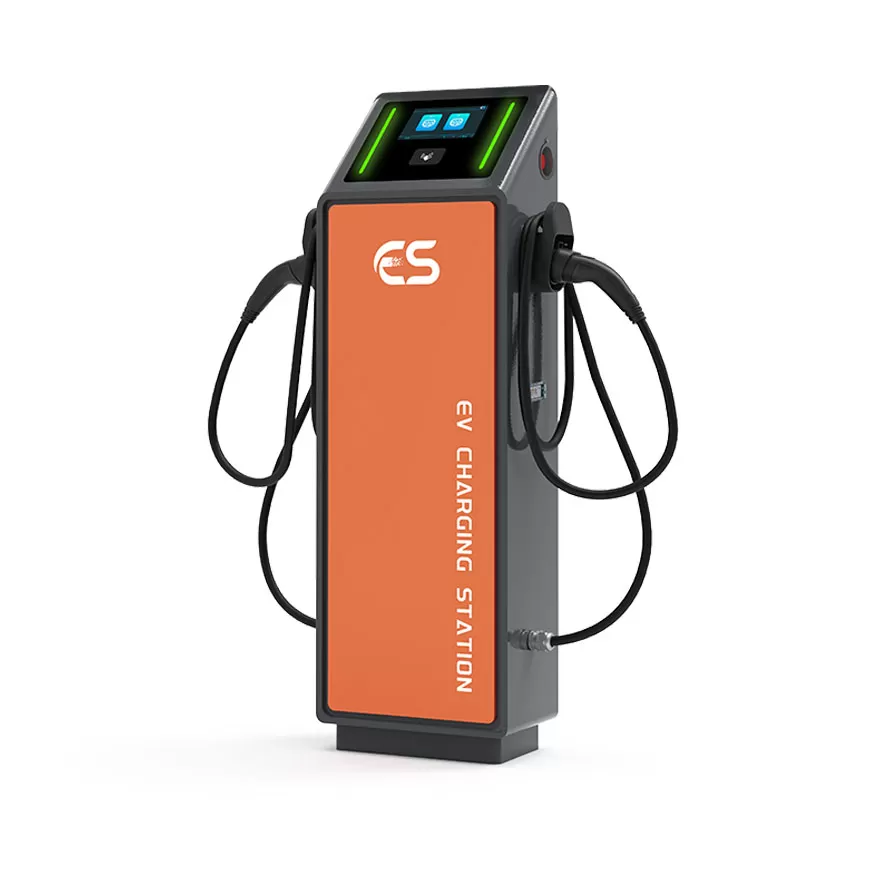

With/without roof, it's up to you.

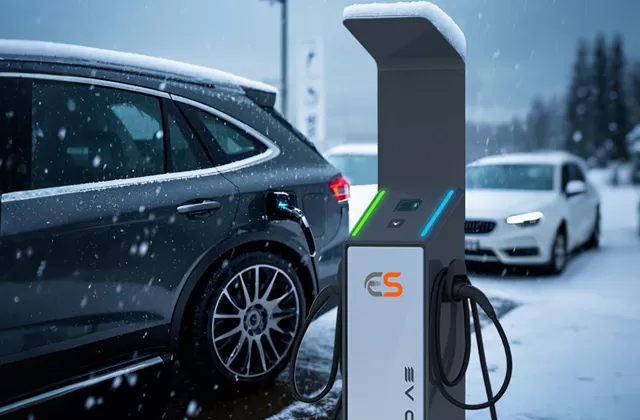

Performs between -30 and + 50°C
Integrated RCB B and AC/DC leakage detection.

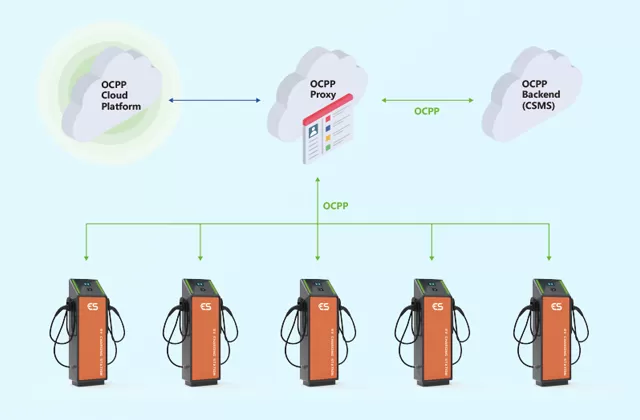

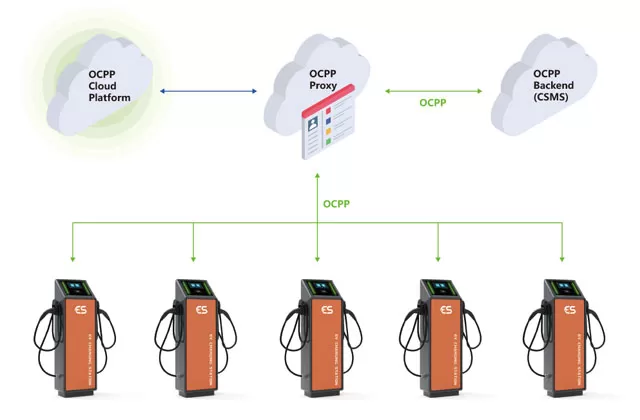

This twins EV charger is OCPP-compatible, enabling backend integration for capabilities including user identification, remote monitoring and system control.

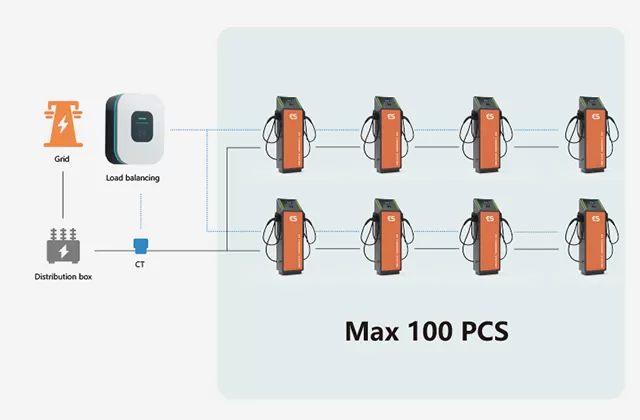

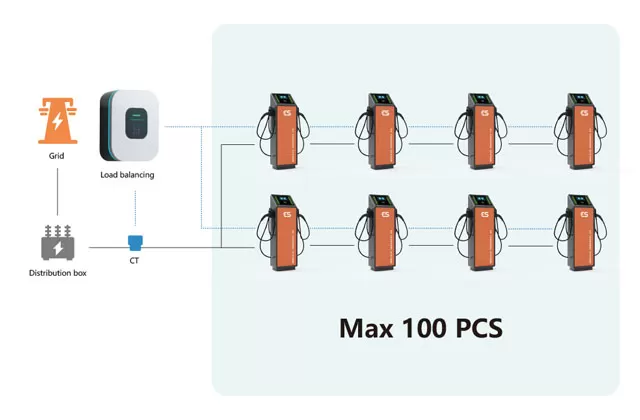

Connect up to 100 charging points per cluster and manager all stations via the Estar dynamic Load balancer, you can reduce infrastructure and energy costs.
Reduce costs with dynamic load balancer
Manage your charging network from one backend.
Easily scale your charging network.
| Specification | ||
| Model | ES-ACV11（ S） | ES-ACV22（ S） |
| Electrical Properties | ||
| Voltage | 400V AC ±10% | |
| Max.Output Current | 2*16A | 2*32A |
| Max.Output Power | 2*11kW | 2*22kW |
| Frequency | 50/60HZ | |
| Residual current protection | 30mA AC+ DC 6mA | |
| Design | ||
| Emergency Stop Button | Yes | |
| Display | 4.3" LCD touch screen | |
| RFID Function | Yes | |
| Charging Outlet | Two charging socket （Type 2）/4.5M charging cable | |
| Energy Meter | On board power meter | |
| Housing Material | SPCC carbon steel | |
| Installation Method | Floor mounted | |
| Network Gateway | LAN | |
| Communication Protocol | OCPP1.6(J-SON) | |
| Warranty | 2 years | |
| Environmental Performance | ||
| Protection Level | IP55 | |
| Working altitude | <2000M | |
| Application site | Indoor/Outdoor | |
| Working temperature | -30 ℃~+50 ℃ | |
| Working humidity | 5%~95%, No condensation | |
| Atmospheric pressure | 80kPa~101kPa | |
| Optional Config | ||
| Dynamic load balancing | RS485 meter | |
| Energy meter | MID Power meter | |
| Network gateway | WIFI/4G | |
Contact us now for exclusive deals and expert advice!
Discover the future of green energy with Estar EV Chargers. Request a Quote
