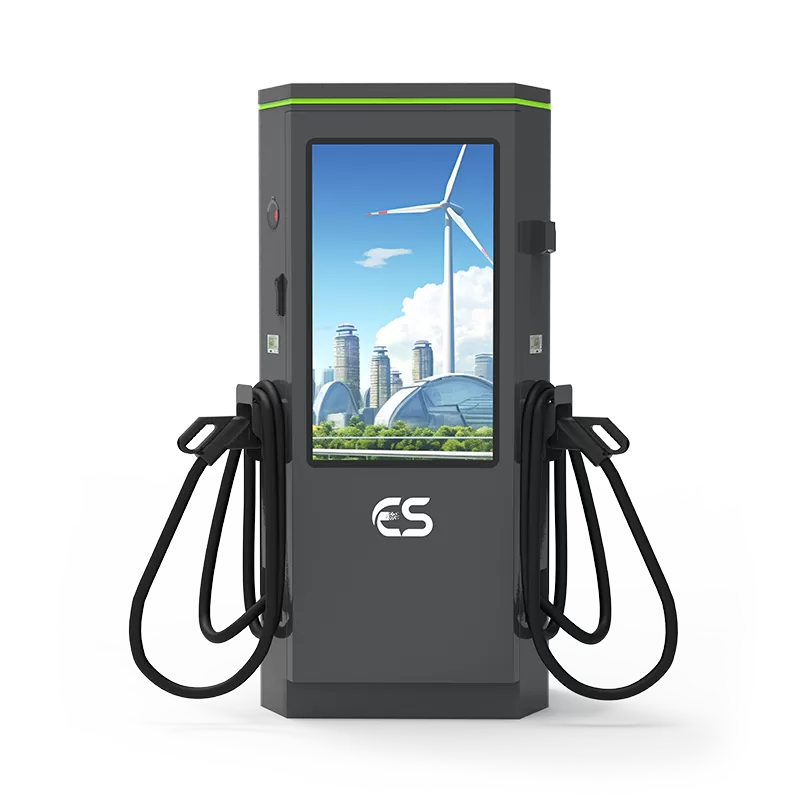

Advertising EV charger, it is not only an public EV charger, but also a good solution with consistent ROI through stunning advertising space.
Comply with Eichrecht regulations

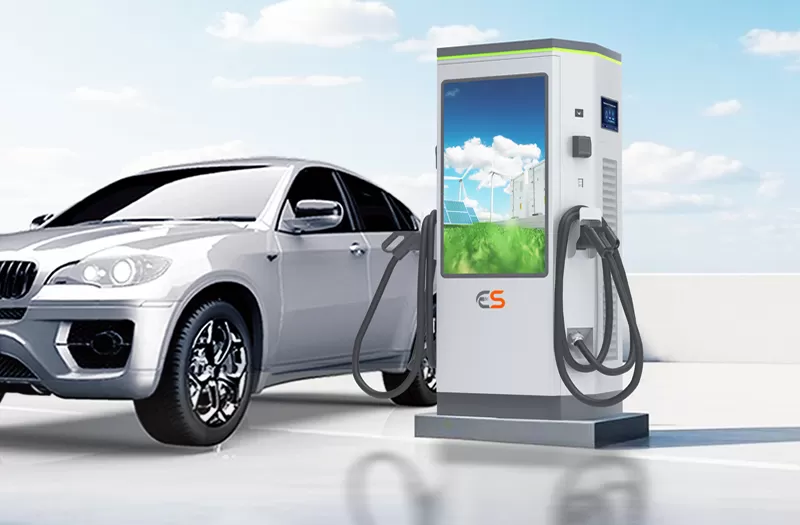

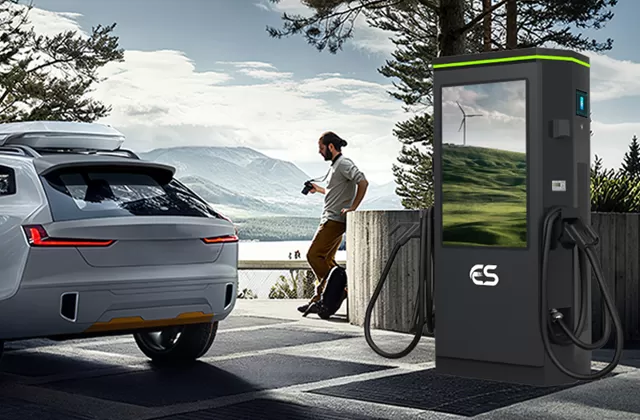

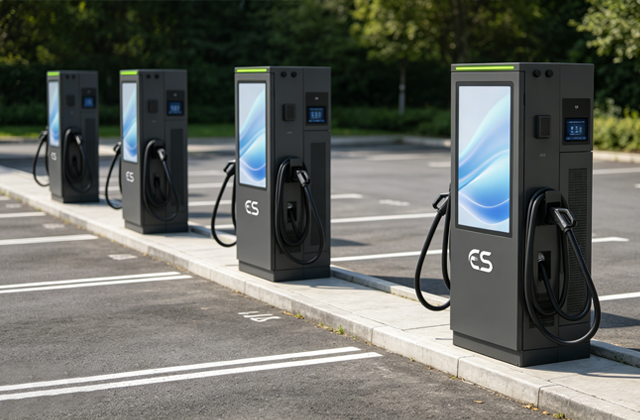

Embark on a journey into the future of digital advertising with the Estar DC Advertising Charger. This revolutionary device serves as your exclusive portal to state-of-the-art technology and profound sustainability initiatives. It can not only boost your revenue from charging operations but also increase the income from advertising space leasing.

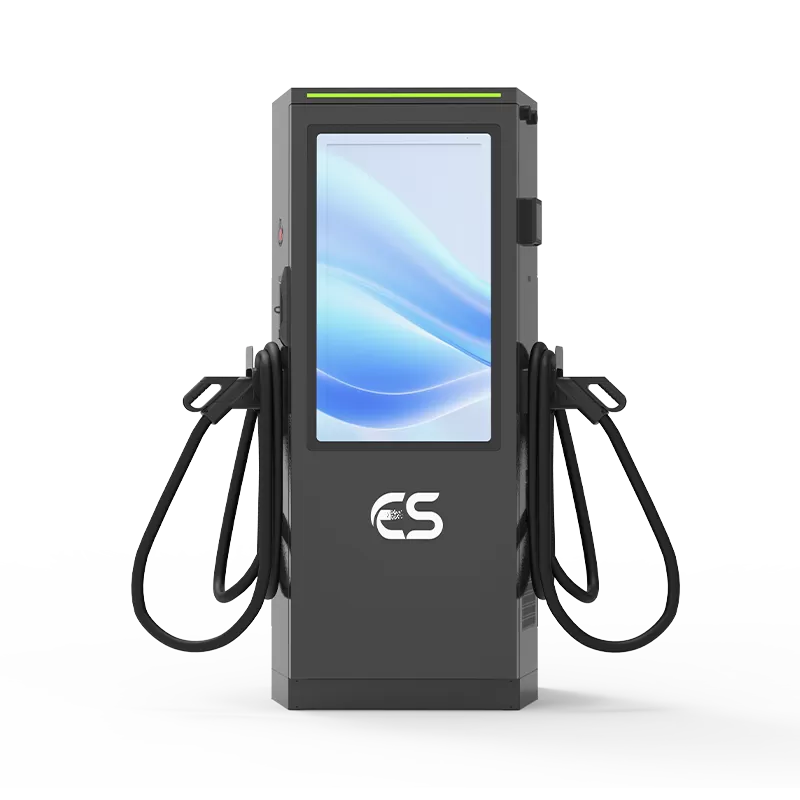

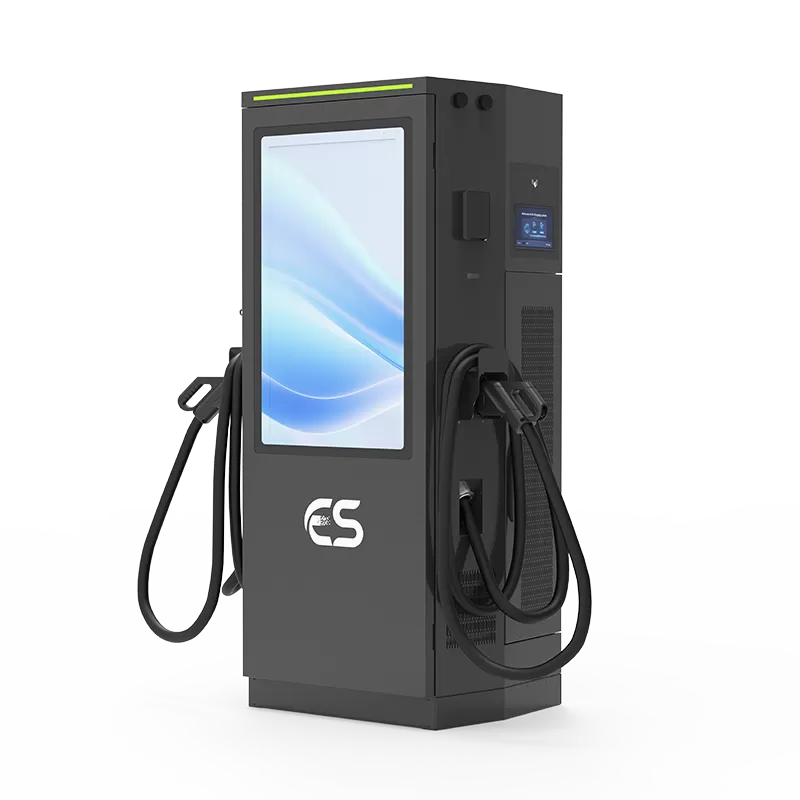

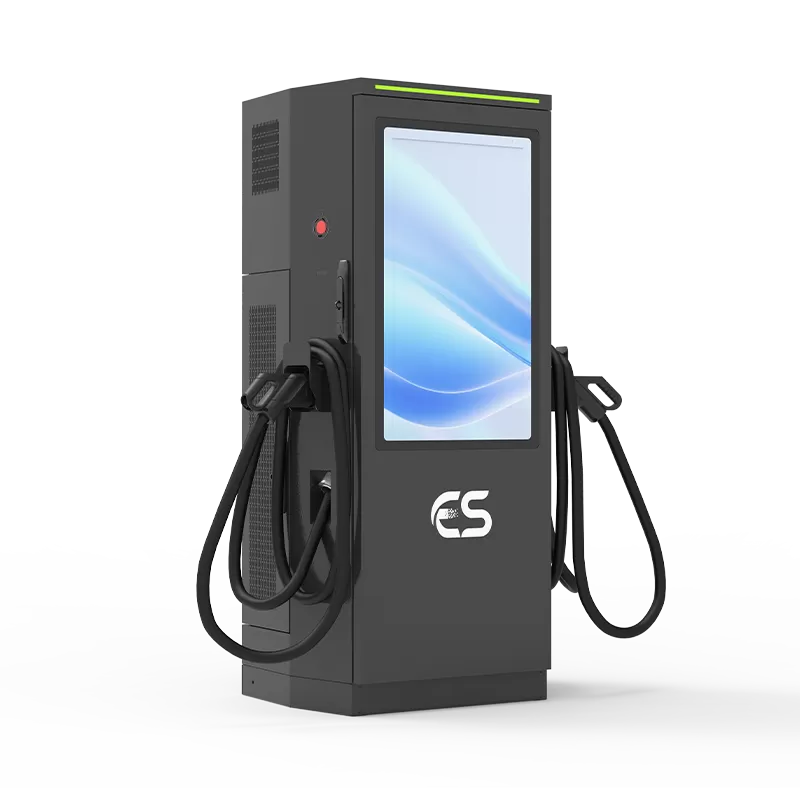

Equipped with an eye-catching 43-inch high-resolution outdoor display, it showcases vivid and crystal-clear visuals, even when exposed to direct sunlight. Its visual impact is so powerful that it’s guaranteed to captivate audiences, no matter the environment.
The highest charging current is up to 240KW, and the charging voltage is between 200V and 1000V, satisfying the charging needs of different vehicle models in the market. There are various charging connectors like CCS2, GB/T, and CHADEMO, meeting the demands of different standards in various markets.
This overhead charging indicator sets a new standard with its driver - centric design. Equipped with an array of different lighting signals and high - intensity LED light strips, it’s engineered for maximum visibility. Even in the most challenging conditions—pitch - black nights or thickly foggy days—drivers can effortlessly identify the charging status from a significant distance. Whether the unit is in standby mode, actively charging, fully charged, or has encountered a malfunction, the indicator clearly communicates the information, ensuring a seamless charging experience
| Specification | ||||
| Model | ES-D60K | ES-D90K | ES-D120K | |
| Electrical Properties | ||||
| AC Input | Input Rating | AC400V(±20%) 3ph | AC400V(±20%) 3ph | AC400V(±20%) 3ph |
| AC Input Connection | 3P+N+PE | 3P+N+PE | 3P+N+PE | |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Power Factor | ≥0.99 | ≥0.99 | ≥0.99 | |
| Efficiency | ≥96% | ≥96% | ≥96% | |
| Output Voltage Range | 150V-1000V | 150V-1000V | 150V-1000V | |
| DC Output | Max.Output Current (single connector) | 200A | 250A | 250A |
| Max.Output Power | DC60kW | DC90kW | DC120kW | |
| Voltage Accuracy | ≤±0.5% | ≤±0.5% | ≤±0.5% | |
| Current Accuracy | ≤±1% | ≤±1% | ≤±1% | |
| User Interface & Control | ||||
| Display | 10" touch screen/43" advertising screen | |||
| Screen Material | LCD | |||
| Push Buttons | Operation buttons/Emergency buttons | |||
| User Authentication | RFID,OCPP,QR code,Password | |||
| Support language | English (Other languages available upon request) | |||
| Communication | ||||
| External | WIFI, 4G, LAN | |||
| Internal | CAN,RS485,RS232 | |||
| Environmental | ||||
| Operating Temperature | -20 ℃ ~ +50 ℃ | |||
| Humidity | <95% relative humidity, non-condensing | |||
| Altitude | ≤2000m(6000 feet) | |||
| Mechanical | ||||
| Ingress protection | IP55 | |||
| Cooling | Air forced | |||
| Installation Method | Floor-stand | |||
| Protection | ||||
| Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault | |||
| Regulation | ||||
| Certificate | CE | |||
| Interface Standard | CCS、CHAdeMO、GB/T | |||
| Specification | ||||
| Model | ES-DC150K | ES-DC180K | ES-DC240K | |
| Electrical Properties | ||||
| AC Input | Input Rating | AC400V(±20%) 3ph | AC400V(±20%) 3ph | AC400V(±20%) 3ph |
| AC Input Connection | 3P+N+PE | 3P+N+PE | 3P+N+PE | |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
| Power Factor | ≥0.99 | ≥0.99 | ≥0.99 | |
| Efficiency | ≥96% | ≥96% | ≥96% | |
| Output Voltage Range | 150V-1000V | 150V-1000V | 150V-1000V | |
| DC Output | Max.Output Current (single connector) | 250A | 250A | 250A |
| Max.Output Power | DC150kW | DC180kW | DC240kW | |
| Voltage Accuracy | ≤±0.5% | ≤±0.5% | ≤±0.5% | |
| Current Accuracy | ≤±1% | ≤±1% | ≤±1% | |
| User Interface & Control | ||||
| Display | 10" touch screen/43" advertising screen | |||
| Screen Material | LCD | |||
| Push Buttons | Operation buttons/Emergency buttons | |||
| User Authentication | RFID,OCPP,QR code,Password Application | |||
| Support language | English (Other languages available upon request) | |||
| Communication | ||||
| External | WIFI, 4G, LAN | |||
| Internal | CAN,RS485,RS232 | |||
| Environmental | ||||
| Operating Temperature | -20 ℃ ~ +50 ℃ | |||
| Humidity | <95% relative humidity, non-condensing | |||
| Altitude | ≤2000m(6000 feet) | |||
| Mechanical | ||||
| Ingress protection | IP55 | |||
| Cooling | Air forced | |||
| Installation Method | Floor-stand | |||
| Protection | ||||
| Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault | |||
| Regulation | ||||
| Certificate | CE | |||
| Interface Standard | CCS、CHAdeMO、GB/T | |||
