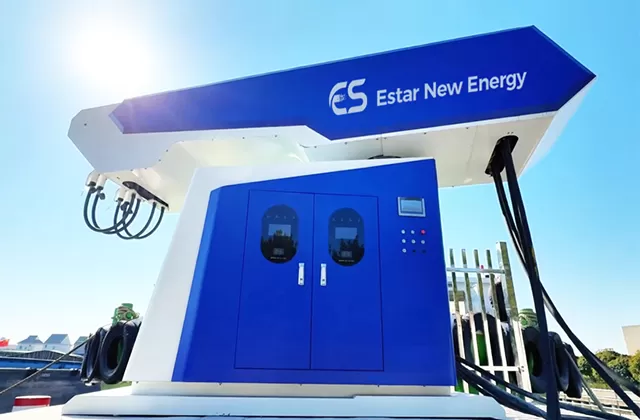

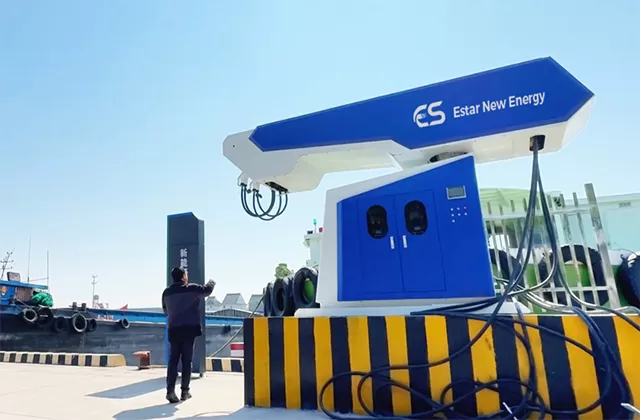

Electric Ship Charging solution: The New Engine of Green Shipping
Pure electric ships can achieve zero emissions, effectively reducing greenhouse gas and pollutant emissions, and contributing to the protection of the blue sky and clear water. The used batteries can also be recycled and centrally disposed of to avoid environmental pollution. In terms of comfort, the operation of electric ships greatly reduces vibrations and noise, creating a quiet and comfortable environment for crew members and passengers. Estar's electric ship charging solution will serve as an important engine for the development of the pure electric ship industry.

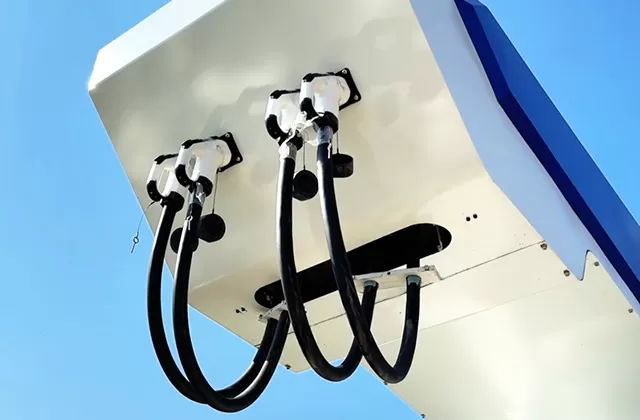

The product craftsmanship is optimized. After undergoing more stringent environmental tests, it can still operate safely and stably in special and extreme weather conditions. The overall protection of the machine body reaches the IP55 standard, endowing it with stronger resistance to salt spray and corrosion.
With a full - matrix topology and flexible allocation, the charging modules can be called on demand. The modules have zero standby loss and are highly compatible with a 1000V voltage platform.
It is equipped with eightfold safety protection features, including overvoltage, undervoltage, overcurrent, electric leakage, open circuit, abnormal temperature, abnormal BMS (Battery Management System), emergency stop, etc. The overall protection of the machine body reaches the IP55 standard, ensuring the safety protection of people and vehicles throughout the entire charging process.
All products are insured by China Life Insurance, allowing for worry-free use.

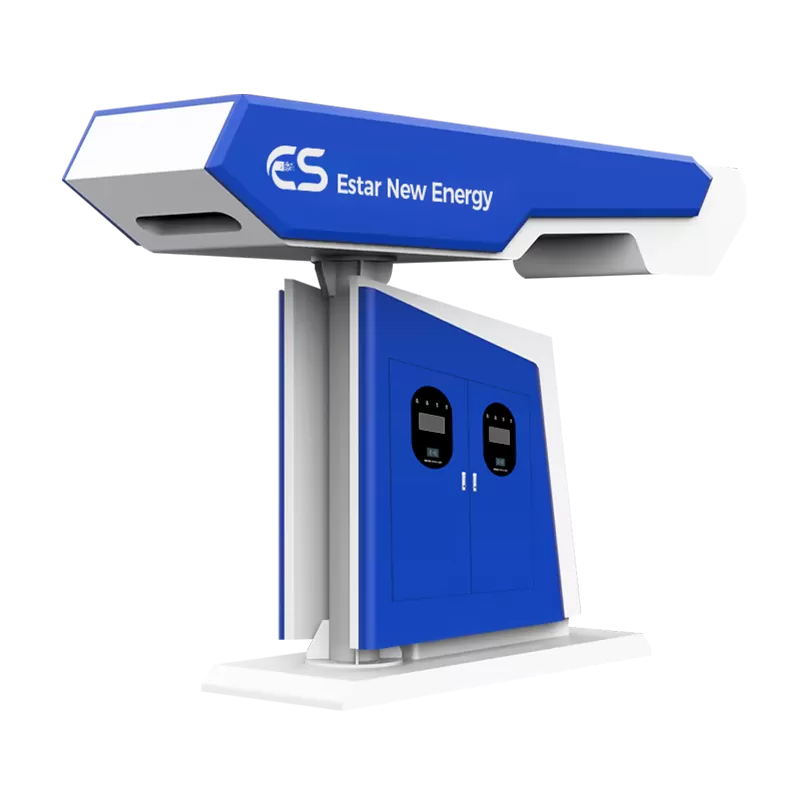

Product Model | CX-D4ODGR | CX-SDD250X2(Air-cooled Terminal) | CX-SDD600X1(Liquid-cooled Terminal) |
Output Power | 960kW | 500kW | 600kw |
Dimensions (W×D×H) | 1900*1000*1900 mm | 460mm*300mm*1450mm | 400mm*460mm*1600mm |
Input Voltage | AC380V±20% | ||
Input Frequency | 47~63hz | ||
Output Voltage | 150-1000VDC | ||
Constant Power Range | 300-1000VDC | ||
Communication Interface | 4G/Ethernet | ||
Voltage Regulation Accuracy | ≤0.2% | ||
Current Regulation Accuracy | ≤0.2% | ||
Human-Machine Interface (HMI) | 7-inch Color Touch Screen | ||
Efficiency | ≥96% | ||
Power Factor | ≥0.99 | ||
Current Sharing Coefficient | ≤5% | ||
Harmonic Current Limiting | ≤5% | ||
Noise | ≤65db | ||
Measurement Accuracy | Level 1 | ||
Protection Level | IP55 | ||
Standby Power Consumption | ≤N*10W | ||
Cooling Method | Forced Air Cooling / Oil Immersion Liquid Cooling | ||
Electrostatic Discharge Immunity | Level 4 | ||
Surge Immunity | Level 4 | ||
Ambient Temperature | -30℃~55℃ | ||
Ambient Humidity | 5%~95%No Condensation | ||
Altitude | ≤2000 m | ||
