Conform to the provisions and requirements of IEC 62196-3-2022, it can charge all EV manufactured in Europe and USA, correctly and effectively with high compatibility.

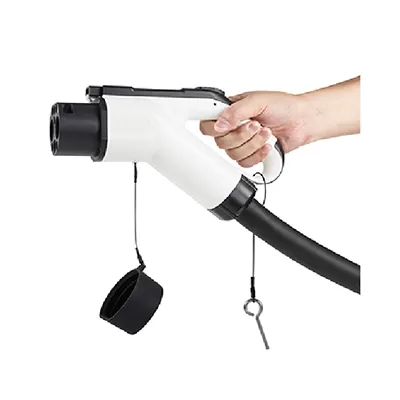

Using riveting pressure process with none screw with beautiful appearance. Hand-held design conform to ergonomic principle, plug conveniently.
The gun shell is made of PBT raw materials from the Sabric brand imported from Saudi Arabia, and it is designed with a non-slip handle. The TPU raw materials are imported from Huntsman in Germany, which shows excellent performance in resistance to flexing. It is equipped with a dual-temperature control system, and the current range is from 80A to 300A.

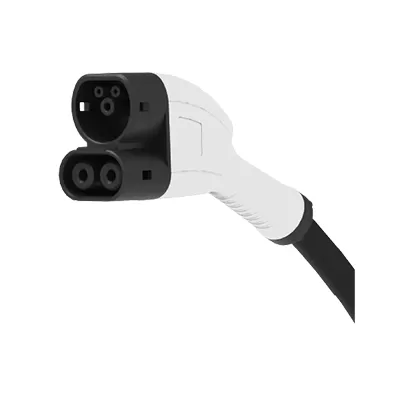

Excellent internal waterproof protection performance, protection grade achieved IP55 (working condition). The shell can effectively insulate water from body and enhance the safety level even in bad weather or special circumstances.
Keep the laser logo space for customer. Provide OEM/ODM service to help customer expand market easier
Direct factory sales. First-class quality.

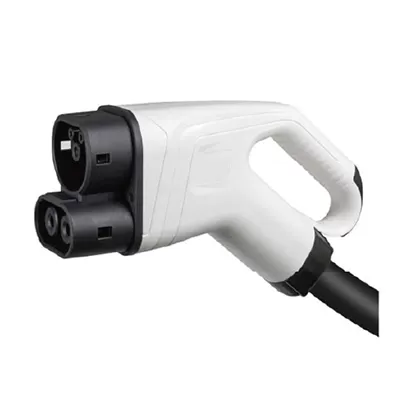

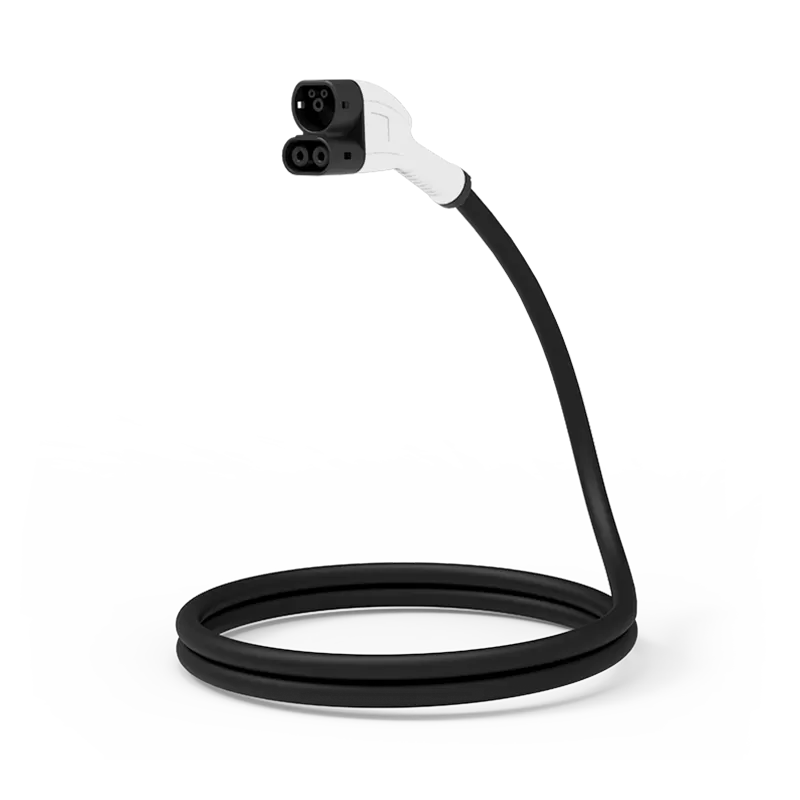

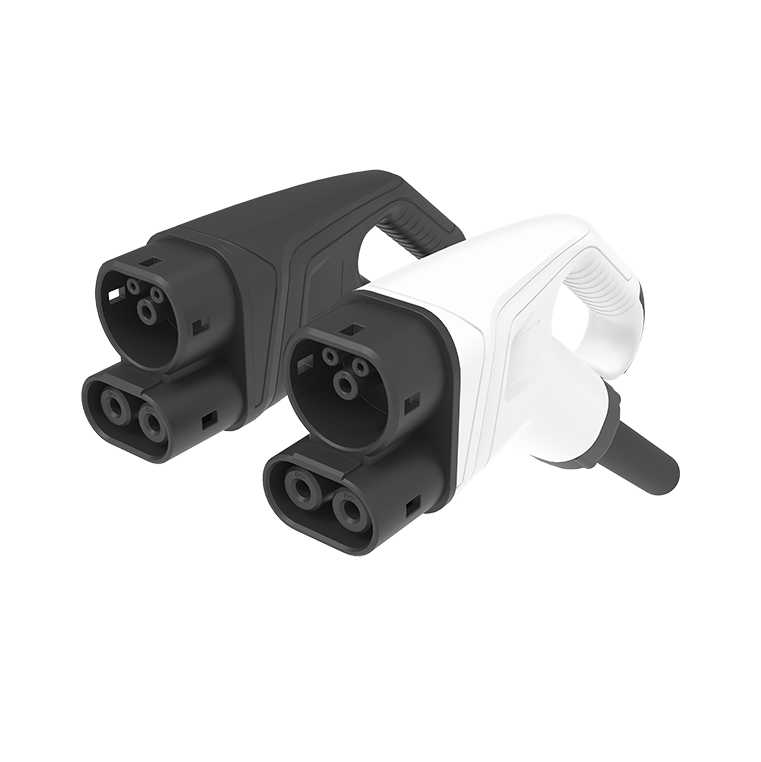

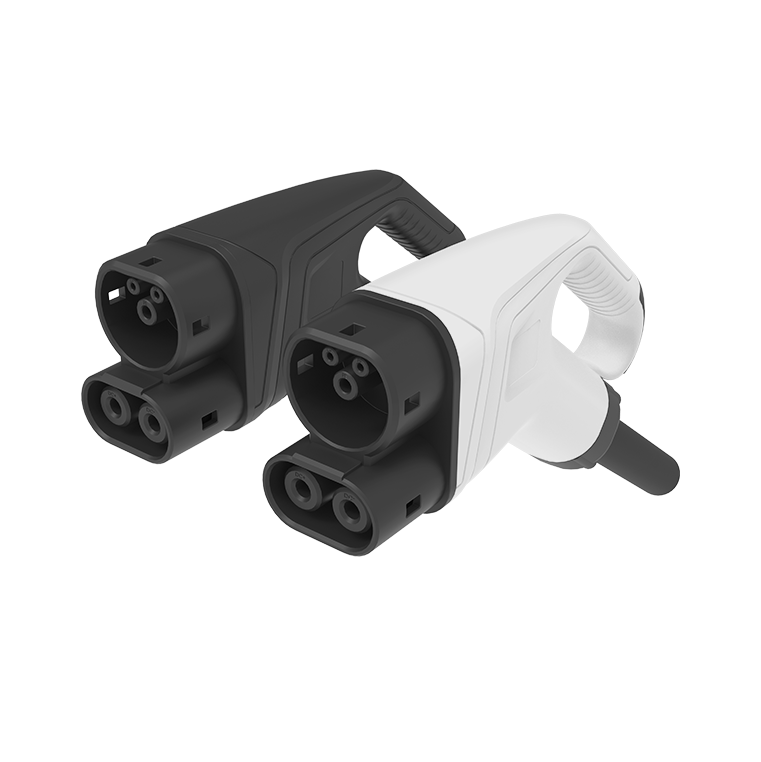

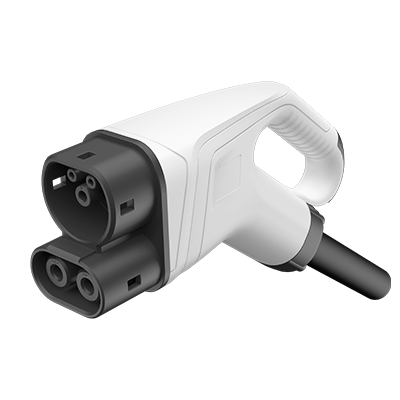

CCS 2 DC Cable
Rated Current
Rated Current 80A,125A,150A,200A,250A,300A
Rated Voltage 1000V
Compatible with 20Kw/30kW small DC chargers

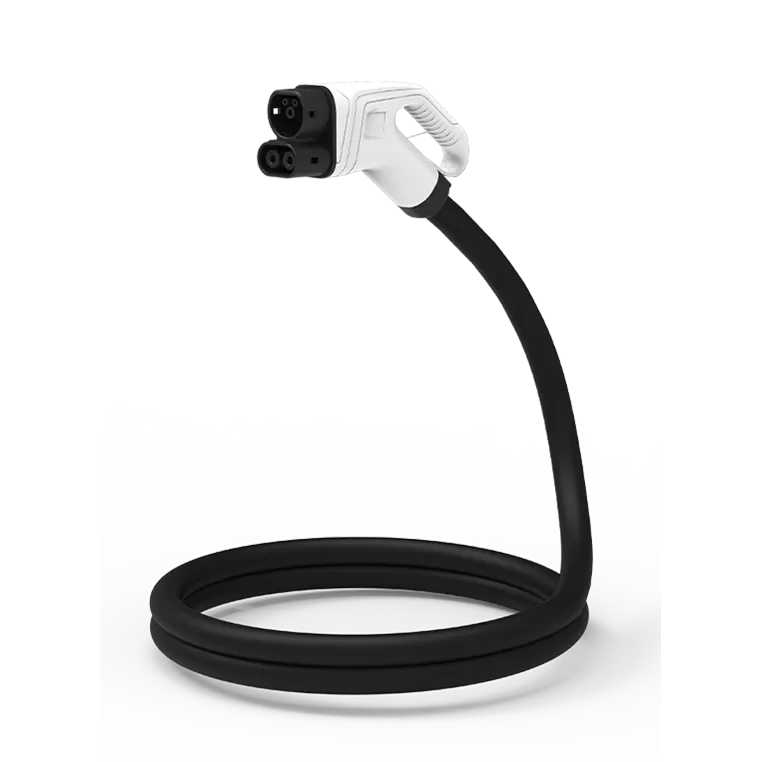

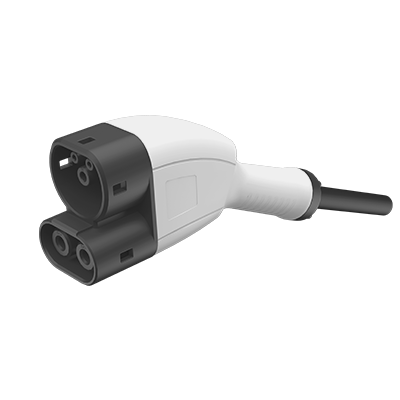

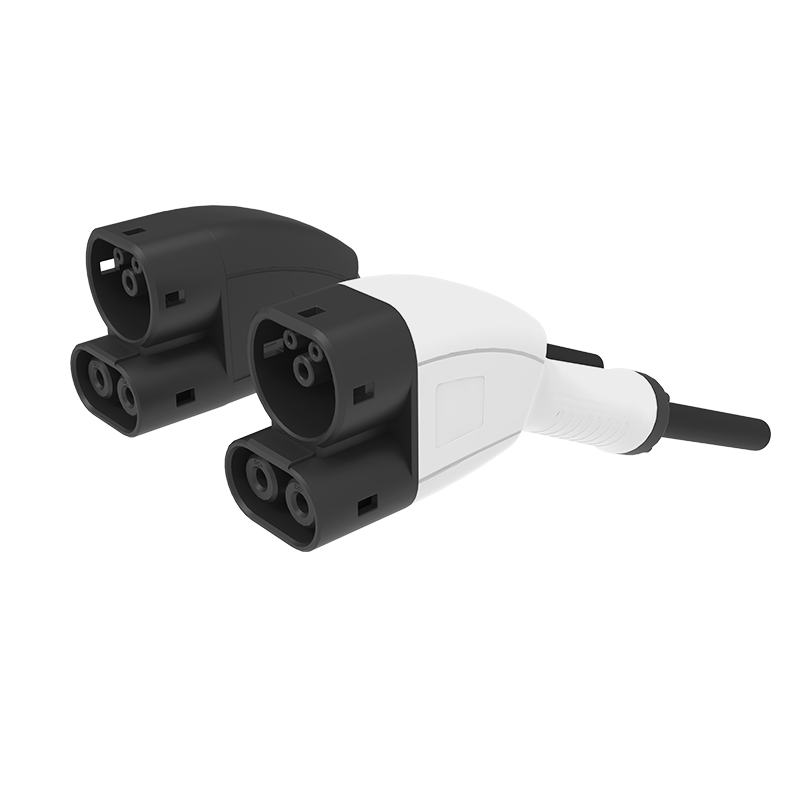

CCS2 Small DC Cable
32A/ 50A/80A
Rated Voltage 1000V
Compatible with 40kW-300kW DC fast chargers

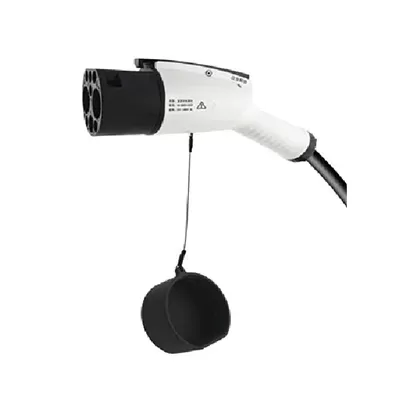

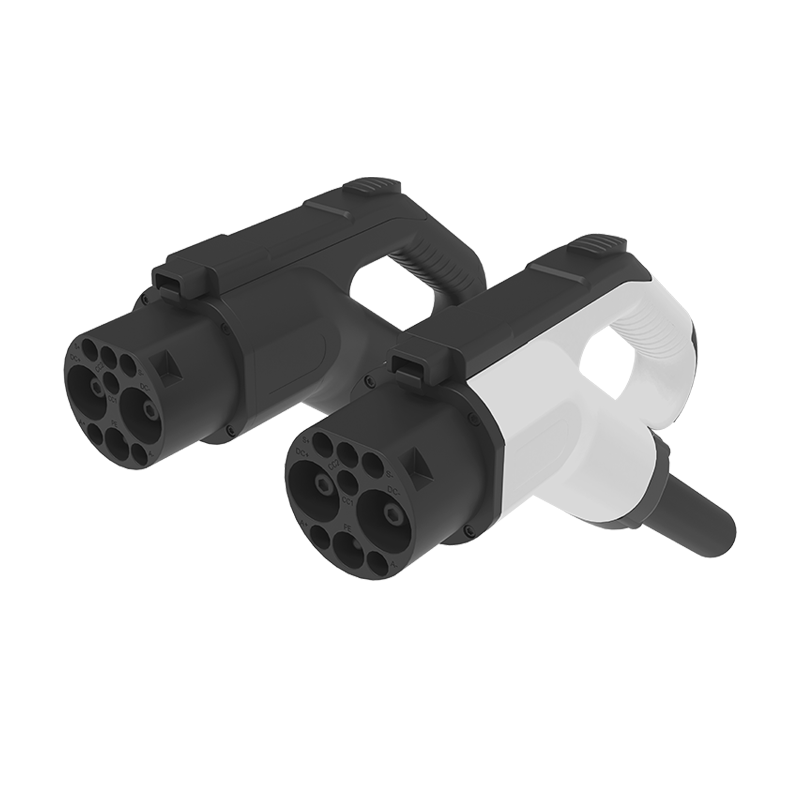

GBT DC Cable
Rated Current 32A, 40A, 63A, 80A, 125A, 200A, 250A
Rated Voltage 750V
Compatible with 40kW-240kW DC fast chargers
| Product Code | Rated current | Rated voltage | Cable specifications |
| AG-IEC3-IVc2-C32P | 32A | 1000V | 2*6mm²+1*6mm²+(6*0.75mm²) (P2) |
| AG-IEC3-IVc2-C50P | 50A | 1000V | 2*10mm²+1*6mm²+(6*0.75mm²) (P2) |
| AG-IEC3-IVc2-C80P | 80A | 1000V | 2*16mm²+1*10mm²+(6*0.75mm²) (P2) |
IEC Interface
IP55
| Product Code | Rated current | Rated voltage | Cable specifications |
| AG-IDC-80A | 80A | 1000V | 2*16mm²+1*25mm²+(6*0.75mm²)(P2) |
| AG-IDC-125A | 125A | 1000V | 2*35mm²+1*25mm²+(6*0.75mm²)(P2) |
| AG-IDC-150A | 150A | 1000V | 2*50mm²+1*25mm²+(6*0.75mm²)(P2) |
| AG-IDC-200A | 200A | 1000V | 2*70mm²+1*25mm²+(6*0.75mm²)(P2) |
| AG-IDC-250A | 250A | 1000V | 2*80mm²+1*25mm²+(6*0.75mm²)(P2) |
| AG-IDC-300A | 300A | 1000V | 2*95mm²+1*25mm²+(6*0.75mm²)(P2) |
IEC Interface
IP55
| Product Code | Rated current | Rated voltage | Cable specifications |
| AG-GBDC-C32P | 32A | 1000V | 2*6mm²+1*6mm²+2*1.5mm²+(3*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C50P | 50A | 1000V | 2*10mm²+1*6mm²+2*1.5mm²+ (3*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C63P | 63A | 1000V | 2*16mm²+1*6mm²+2*1.5mm²+ (3*0.75mm²)(P2)+8*0.75mm² |

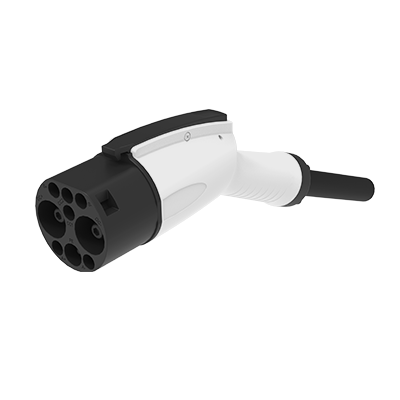

GB/T Interface
IP55
| Product Code | Rated current | Rated voltage | Cable specifications |
| AG-GBDC-C80P | 80A | 1000V | 2*20mm²+1*6mm²+2*1.5mm²+(4*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C125P | 125A | 1000V | 2*35mm²+1*6mm²+2*1.5mm²+(4*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C150P | 150A | 1000V | 2*50mm²+1*6mm²+2*1.5mm²+(4*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C200P | 200A | 1000V | 2*70mm²+1*6mm²+2*1.5mm²+(4*0.75mm²)(P2)+8*0.75mm² 2*70mm²+1*16mm²+2*2.5mm²+(4*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C250P | 250A | 1000V | 2*80mm²+1*6mm²+2*1.5mm²+(4*0.75mm²)(P2)+8*0.75mm² 2*80mm²+1*16mm²+2*2.5mm²+(4*0.75mm²)(P2)+8*0.75mm² |
| AG-GBDC-C300P | 300A | 1000V | 2*95mm²+1*6mm²+2*1.5mm²+3*(4*0.75mm²)(P2) 2*95mm²+1*16mm²+2*2.5mm²+3*(4*0.75mm²)(P2) |

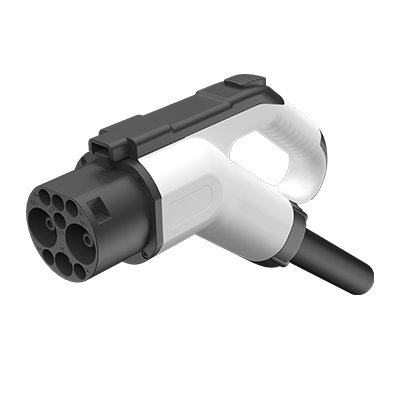

GB/T Interface
IP55
