Estar home portable EV charging cable allows to charge anywhere and anytime, the reservation make charging scheduled and save tariff.
With current regulation from 6A-16A and 8-32A, Mode 2 portable EV charger offers a suitable current range for EV drivers.
The charging reservation allows you to avoid peak hours and wake up with a fully charged EV.
Estar IP65 portable charging solutions for indoor and outdoor use.

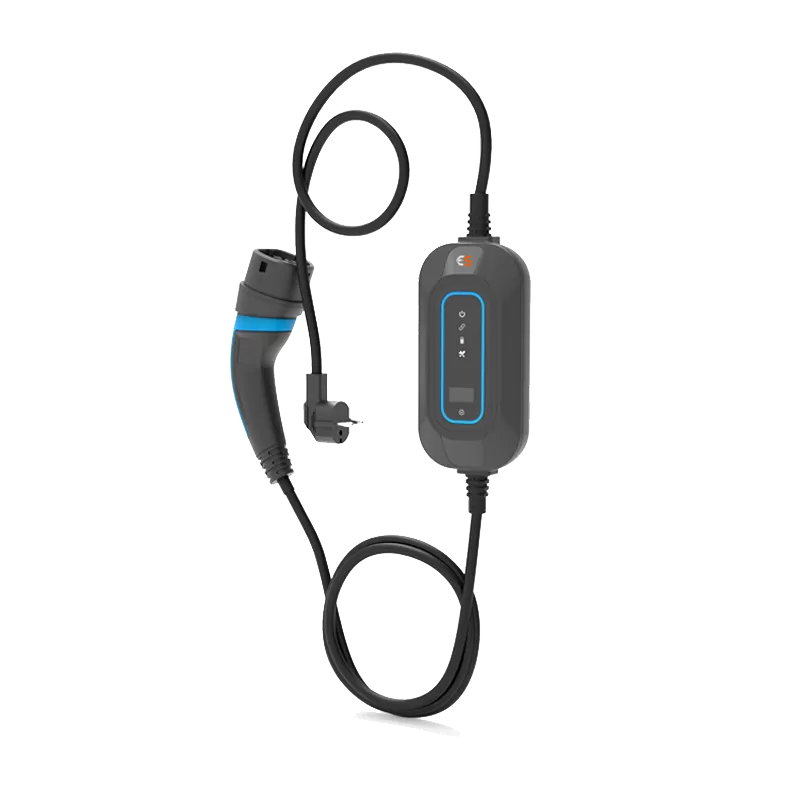

The Estar Portable EV Charging Cable offers a convenient and plug-and-play solution for powering your electric car. It is designed to meet the latest IEC standards and can be used with any electric vehicle.
Performs between-30 and + 50°C
It underwent the strictly testing by Rhineland TUV, and provide the Industry-leading all-aspects protections.
Integrated RCB B and AC/DC leakage detection.
There is an option without screen for this portable EV charger, providing an extra choice with lower cost.
| Specification | |
| Model | ES-ACP-001/ES-ACP-002 |
| Electrical Properties | |
| Voltage | 230V AC±20%/ 400V AC±10% |
| Max.Output Current | 16A / 32A（ 6 / 8 / 10 / 13 / 16 / 20 / 24 / 32A adjust） |
| Max.Output Power | 3.5kW / 7kW / 11kW / 22kW |
| Frequency | 50 / 60Hz |
| Residual current protection | 30mA as default 6mA is optional |
| Structure Design | |
| LED Indicator | LED Light bar |
| Front Panel | PMMA |
| Installation Method | Wall-mount/carry-on Optional |
| Charging Outlet | Type1/2 + 4.5M charging cable |
| Power incoming line | 0.5M |
| Total cable length | >5M |
| Housing Material | PC+GF 10% |
| Security Protection | |
| Multiple Protection | Over/Under voltage protection, Surge protection, Over temperature protection, Over current protection, Leakage Protection, Short circuit protection, EFT Protection |
| Warranty | 1 year |
| Environmental Performance | |
| Working temperature | -30 ℃~+50 ℃ |
| Working humidity | 5%~95%, No condensation |
| Protection Level(control box) | IP65 |
| Altitude | ≤2000m |
| Application Site | Indoor/Outdoor |
| Cooling Method | Natural cooling |
| Extra Function | |
| Temperature detection function | Yes (check the temp.of PCB and show it on the screen ) |
| Schedule charging | Yes (1-12hours ) |
